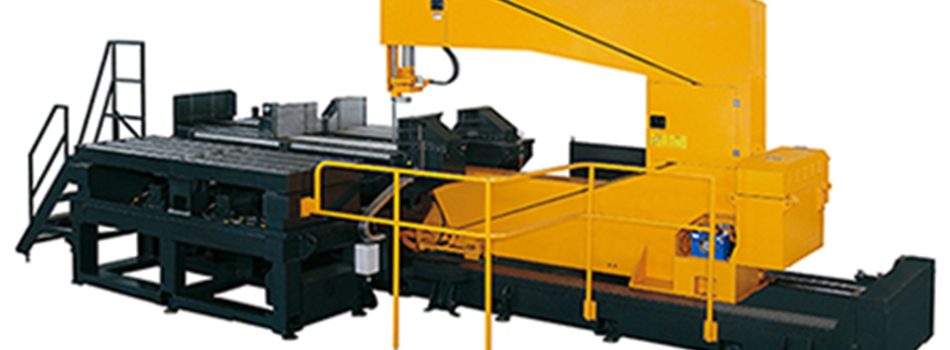

Model V-0625
Cutting capacity (H x D) 600 mm x 2500 mm (23.6″ x 98.4″)
nmin. clamp width 1500 mm (59″)
Blade Speed 15-75 m/min (50 to 250 fpm)
Motor Blade drive 5.5 kW (7.5 HP)
Hydraulic pump 2.2 kW (3 HP)
Coolant pump 0.6 kW (3/4 HP)
Chip conveyor 0.4 kW (1/2 HP)
Blade Size 9850 x 41 x 1.3 mm (387.8″ x 1.6″ x 0.05″)
Shuttle vise stroke 400 mm (15.7″) (optional)
Saw frame feed Hydraulic
Saw frame shuttle stroke 2700 mm (106.3″)
Table height 1350 mm (53″)
Machine weight 17500 kgs (38500 lbs) (SA)
n21700 kgs (47740 lbs) (HA)
Floor space without roller table (LxDxH) 3100 x 8400 x 3200 mm (SA)
n(122″ x 330.7″ x 126″) (SA)
3400 x 8400 x 3200 mm (HA)
n(133.8″ x 330.7″ x 126″) (HA)
