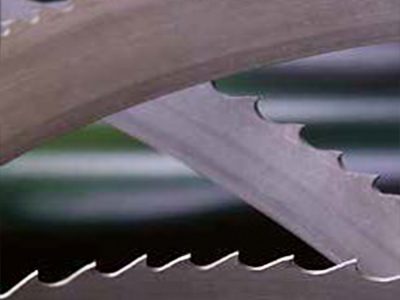

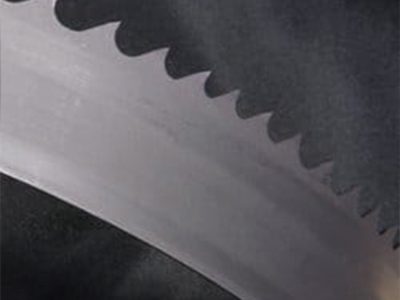

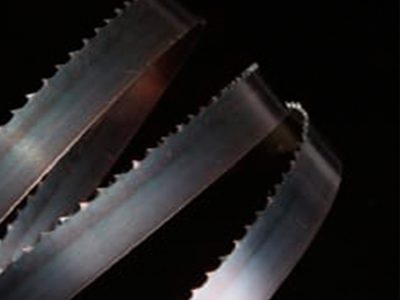

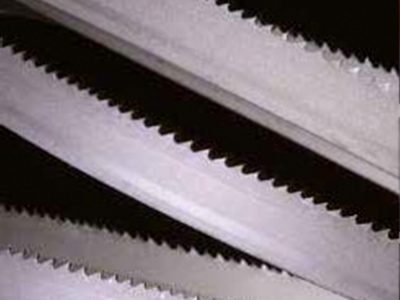

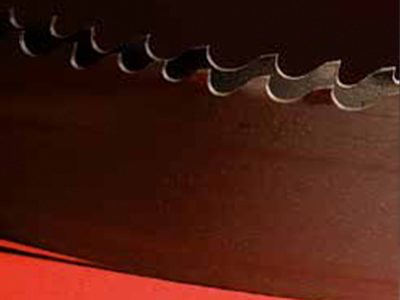

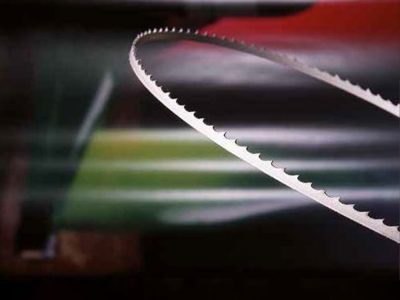

Hojas de sierra
máquinas de sierra
-
EP-330S
MODEL EP-330S Capacity 30 – 330 mm 30 – 330 x 400 mm Saw Blade Blade Size 5580 x 54 x 1.3 mm Blade Speed 15 – 200 m/min Blade Tension Hydraulic Motor Blade 15 kW (20 HP) Hydraulic Pump 2.2 kW (3 HP) Saw Head Feed 3.5 kW Material…
E-430
MODEL E-430 CAPACITY Ø 30-430 mm 30-430 mm BLADE SIZE 6100 x 54 x 1.6 mm BLADE SPEED 15-120 m/min BLADE TENSION HYDRAULIC MOTOR BLADE DRIVE 11 kW (15 HP) HYD. PUMP 2.2 kW (3 HP) COOLANT PUMP 375 W WIRE BRUSH 120 W AUTO. CHIP CONVEYOR CHAIN TYPE MACHINE…
E-830
MODEL E-830 CAPACITY Ø 250-830 mm 250-830 mm BLADE SIZE 8500 x 80 x 1.6 mm BLADE SPEED 12-120 m/min BLADE TENSION HYDRAULIC MOTOR BLADE DRIVE 18.5 kW (25 HP) HYD. PUMP 3.7 kW (5 HP) COOLANT PUMP 375 W WIRE BRUSH 120 W AUTO. CHIP CONVEYOR CHAIN TYPE MACHINE…
S-460HB
Model S-460HB Capacity 460 mm (18″) 460 x 460 mm (18″W x 18″H) Bundle Cutting Width 195 to 350 mm (8″ to 14″) Height 125 to 230 mm (5″ to 9″) Blade Speed 20 to 100 m/min (65 to 330 fpm) (INVERTER) Motor Blade Drive 5.5 kW (7.5HP) Hyd. Pump…
H-560HA
Model H-560HA Capacity 560 mm (22″) 610 x 560 mm (24″W x 22″H) min. clamp width 110 mm (4.3″) Blade Speed 18 to 90 m/min (60 to 300 fpm) (INVERTER) Motor Blade Drive 7.5 kW (10 HP) Hyd. Pump 2.2 kW (3 HP) Coolant Pump 0.2 kW (1/4 HP) Blade…
H-800HANC
Model H-800HANC Capacity 800 mm (31.5”) 800 x 800 mm (31.5”W x .31.5”H) min. clamp width 285 mm (11.2″) Blade Speed 15-90 m/min (50-300fpm) (INVERTER) Motor Blade Drive 11.2 kW (15 HP) Hyd. Pump 3.7 kW (5 HP) Coolant Pump 0.4 kW (1/2 HP) Blade Size 8720 x 67 x…
H-1100HANC
Model H-1100HANC Capacity 1000 mm (40″) 1100 x 1000 mm (43.3″W x 40″H) min. clamp width 400 mm (15.7″) Blade Speed 15 to 75 m/min (50 to 250 fpm) (INVERTER) Motor Blade Drive 11.2 kW (15HP) Hyd. Pump 3.7 kW (5HP) Coolant Pump 0.4 kW (1/2HP) Blade Size 11100 x…
H-5550
Model H-5550 Capacity 500 mm (20″) 550 x 500 mm (22″ W x 20″ H) Blade Speed 17, 25, 35, 45, 65, 75 m/min (55, 80, 115, 150, 180, 215, 250 fpm) Motor Blade Drive 5.5 kw (7.5HP) Hyd. Pump 1.5 kw (2HP) Coolant Pump 0.2 kw (1/4HP) Blade Size…
H-1010
Model H-1010 Capacity 1000 mm (40″) 1000 x 1000 mm (40″ W x 40″ H) min. clamp width 590 mm (23.2″) Blade Speed 15 to 70 m/min. (50 to 230 fpm) (INVERTER) Motor Blade Drive 11.5 kW (15HP) Hyd. Pump 3.7 kW (5HP) Coolant Pump 0.2 kW (1/4HP) Blade Size…
H-1100V
Model H-1100V Capacity 1000 mm (40″) 1100 x 1000 mm (43.3″ W x 40″ H) min. clamp width 400 mm (15.7″) Blade Speed 15 to 75 m/min. (50 to 250 fpm) (INVERTER) Motor Blade Drive 11.5 kW (15HP) Hyd. Pump 3.7 kW (5HP) Coolant Pump 0.2 kW (1/4HP) Blade Size…
GH2525-25
MODEL GH2525-25 CUTTING RANGE SQUARE 2500 mm(W) x 2500 mm(W) CUTTING RANGE ROUND 2500 mm BOW TRAVEL 2500 mm PORTAL STROKE 2500 mm BLADE SIZE 17750 X 80 X 1.6 mm ADJUSTABLE BLADE SPEED 15 – 60 m/min BLADE MOTOR 30 HP HYDRAULIC POWER PACK MOTOR 10 HP HYDRAULIC CHIP…
HW450/650II
Model HW450/650II Capacity 90° 490 mm 650 x 450 mm (W x H) ±45° 390 mm 390 x 420 mm (W x H) -60° 260 mm 260 x 420 mm (W x H) Blade Speed 20 ~ 100 m/min Blade Size 7200 x 41 x 1.3 mm Motor Blade 3.7…
HW700/1100
Model HW700/1100 Capacity 90° 715 mm 1100 x 700 mm (W x H) ±45° 680 mm v 680 x 700 mm (W x H) -60° 480 mm 480 x 700mm (W x H) Min Clamping 410 mm Blade Speed 15 ~ 100 m/min Blade Size 9600 x 54 x 1.6…
S-6240SA
Model S-6240SA Capacity 0 400 mm 620 x 400 mm ±45° 400 mm 420 x 400 mm -60° 300 mm 290 x 400 mm Blade Speed 20, 45, 70, 100 m/min. (65, 150, 230, 330 fpm) Motor Blade drive 3.7 kw (5 HP) Hydraulic Pump 0.75 kw (1 HP) Coolant…
V-0422
Model V-0422 Cutting capacity (H x D) 400 mm x 2200 mm (15.7″ x 86.6″) min. clamp width 1200 mm (47.2″) Blade Speed 15-75 m/min (50 to 250 fpm) Motor Blade drive 7.5 kW (10 HP) Hydraulic pump 2.2 kW (3 HP) Coolant pump 0.6 kW (3/4 HP) Chip conveyor…
VB0707
Model VB0707 Cutting height 700 mm (27.6″) Cutting depth 700 mm (27.6″) Cutting length 1.5/2.5 M Table support width Outer table 700 mm (27.6″) Inner table 700 mm (27.6″) Blade size 6800 x 54 x 1.6 mm (267.7″ x 2″ x 0.06″) Blade speed 15-75 m/min (50 to 250 fpm)…
VBS2016
Model VBS2016 Cutting height 2000 mm (78.7”) Cutting depth 1600 mm (63”) Cutting length 3/4.5/6 M Table support width Outer table 2000 mm (78.7”) Inner table 1600 mm (63”) Blade size 12370 x 80 x 1.6 mm (487” x 3.1” x 0.063”) Blade speed 15-75 m/min (50 to 250 fpm)…
VG250150
Model VG250150 Capacity 250H x 1200W mm Blade Size 8210 x 27 x 0.9 mm Motor 15 kW Blade Speed 500 – 2000 m/min Feeding Speed 0 – 3000 mm/min Feeding Stroke 1500 mm Machine Size 960L x 4700W x 3000H mm Machine Weight 9000 kg
V-700F
Model V-700F Capacity 700H x 700W mm Blade Size 6190 x 41 x 1.3 mm Motor 11 kW Blade Speed 100 – 600 m/min (Synchronously speed adjusting) Feeding Speed Feeding Stroke Machine Size 1790L x 1520W x 2850H mm Machine Weight 2900 kg
H1200/500R
MODEL H1200/500R CAPACITY OD 1200 mm ID 500 mm HEIGHT 500 mm MAX. WALL THICKNESS 300 mm BLADE SIZE 8300 x 67 x 1.6 mm BLADE SPEED 15 to 75 m/min BLADE TENSION Hydraulic MOTOR BLADE 11 kW (15 HP) HYD. PUMP 2.2 kW (3 HP) COOLANT PUMP 0.4 kW…
RV2007DH
MODEL RV2007DH CUTTING CAPACITY MAX. OD 1980 mm MIN. OD 510 mm MAX. ID 1970 mm MIN. ID 500 mm MAX. WALL THICK 220 mm MIN. WALL THICK 10 mm BLADE SIZE 10370 x 80 x 1.1 mm BLADE SPEED 15 – 105 m/min BLADE TENSION Hydraulic MACHINE WEIGHT 60000…
P-75C
Model P-75C Capacity 10 – 75 mm 10 – 54 mm 10 – 54 mm Blade Motor 7.5 kW Hydraulic Pump Motor 1.5 kW Servo Motor Blade Feed 1.5 kW Bar Feed 1 kW Third Vise (Opt.) 1 kW Blade Speed 50 – 200 rpm Saw Blade Size (T:Kerf t:Thickness)…
P-150ILA
Model P-150ILA Capacity Ø70-150 mm 70-105mm Blade Speed 30 – 125 RPM Saw Blade Size (T : Kerf ) Ø460 x T2.7 x 2.25t mm. Blade Motor Hydraulic Pump Motor 15 Kw (20 HP) 3.7 Kw (5 HP) Servo Motor Blade Feed 2KW Bar Feed 2KW Blade Feed Bar Feed…
P230ILA
Model P-230ILA Capacity 70 ~ 230 mm 70 ~ 160 mm Motor Blade Motor 30 kw (40 HP) Hydraulic Pump Motor 3.7 kw (5 HP) Blade Speed 20 ~ 70 rpm Saw Blade Size (T : Kerf ) Dia. 750 x T 3.8 x 3.2t mm Servo Motor Blade Feed…Trabajamos con las mejores marcas
