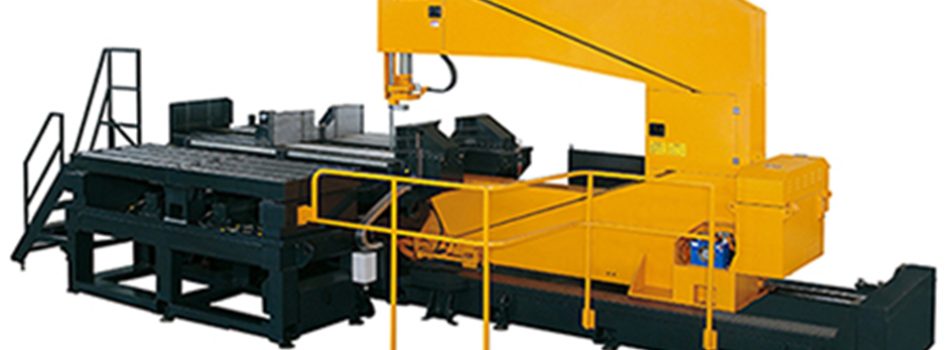

Model V-0422
Cutting capacity (H x D) 400 mm x 2200 mm (15.7″ x 86.6″)
nmin. clamp width 1200 mm (47.2″)
Blade Speed 15-75 m/min (50 to 250 fpm)
Motor Blade drive 7.5 kW (10 HP)
Hydraulic pump 2.2 kW (3 HP)
Coolant pump 0.6 kW (3/4 HP)
Chip conveyor 0.4 kW (1/2 HP)
Blade Size 9940 x 54 x 1.6mm (391.3″ x 2″ x 0.063″)
Shuttle vise stroke 400 mm (15.7″) (optional)
Saw frame feed Servomotor
Saw frame shuttle stroke 2400 mm (94.4″)
Table height 1600 mm (63″)
Machine weight 16500 kgs (36300 lbs) (SA)
n17500 kgs (38500 lbs) (HA)
Floor space without roller table (LxDxH) 3100 x 8150 x 3700 mm (SA)
n(122″ x 320.8″ x 145.6″) (SA)
3400 x 8150 x 3700 mm (HA)
n(133.8″ x 320.8″ x 145.6″) (HA)
