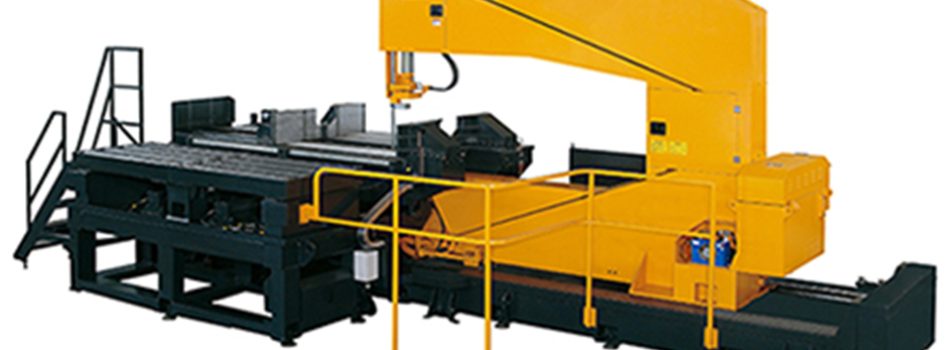

Model V-0417
Cutting capacity (H x D) 400 mm x 1700 mm (15.7″ x 67″)
nmin. clamp width 700 mm (27.5″)
Blade Speed 15-75 m/min (50 to 250 fpm)
Motor Blade drive 7.5 kW (10 HP)
Hydraulic pump 2.2 kW (3 HP)
Coolant pump 0.6 kW (3/4 HP)
Chip conveyor 0.4 kW (1/2 HP)
Blade Size 9040 x 54 x 1.6 mm (355.90″ x 2″ x 0.063″)
Shuttle vise stroke 400 mm (15.7″) (optional)
Saw frame feed Servomotor
Saw frame shuttle stroke 1900 mm (74.8″)
Table height 1600 mm (63″)
Machine weight 15200 kg (33500 lb) (SA)
n16500 kg (36300 lb) (HA)
Floor space without roller table (LxDxH) 3100 x 7300 x 3600 mm (SA)
n(122″ x 287.4″ x 141.7″) (SA)
3400 x 7300 x 3600 mm (HA)
n(133.8″ x 287.4″ x 141.7″) (HA)
