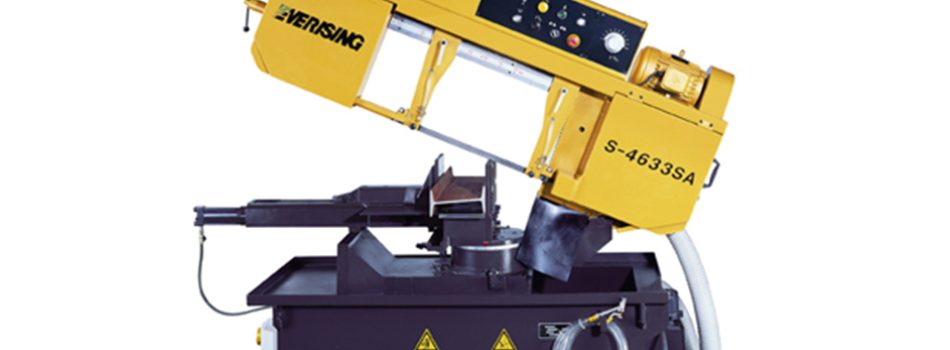

| Model | S-4633SA | ||
|---|---|---|---|
| Capacity | 0 | 330 mm (13″) | |
| 460 x 305 mm (18.1″ W x 12″ H) mm | |||
| ±45° | 305 mm (12″) mm | ||
| 305 x 305 mm (12″ W x 12″ H) mm | |||
| -60° | 220 mm (8.7″) | ||
| 250 x 220 mm (9.8″ W x 8.7″ H) | |||
| Blade Speed | 25, 45, 70, 100 m/min (83, 150, 230, 330 fpm) | ||
| Motor | Blade Drive | 2.2 kW (3 HP) | |
| Hydraulic Pump | 0.4 kW (1/2 HP) | ||
| Coolant Pump | 0.1 kW (1/8 HP) | ||
| Blade Size | 4115 x 27 x 0.9 mm (162″ x 1″ x 0.035″) | ||
| Blade Tension | Manual | ||
| Index Length | Single Feed | – | |
| Max Index Times | – | ||
| Angle Swivel | Manual | ||
| Angle Display | Angle Scale | ||
| Table Height | 770 mm (30.3″) | ||
| Vise Clamping Type | Rack type | ||
| Machine Weight | 800 kg (1764 lb) | ||
| Floor Space ( W x D ) | 2100 mm x 2050 m (82.7″ x 80.7″) | ||
