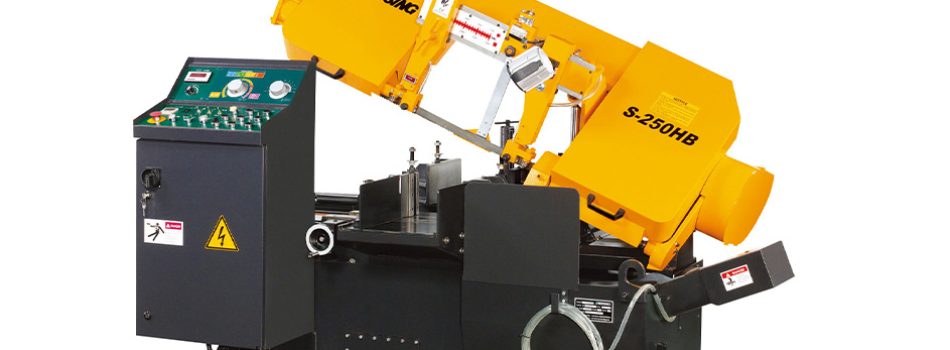

| Model | S-250HB | |
|---|---|---|
| Capacity | 250 mm (10″) | |
| 300 x 250 mm (12″W x 10″H) | ||
| Bundle Cutting | Width | 145 to 190 mm (5.7″ to 7.5″) |
| Height | 30 to 120 mm (1.2″ to 4.5″) | |
| Blade Speed | 20 to 100 m/min (65 to 330 fpm) n(INVERTER) |
|
| Motor | Blade Drive | 3.7 kW (5HP) |
| Hyd. Pump | 0.75 kW (1HP) | |
| Coolant Pump | 0.1 kW (1/8HP) | |
| Blade Size | 3505 x 34 x 1.1 mm n(138″ x 1.3″ x 0.042″) |
|
| Blade Tension | Hydraulic | |
| Index Length | 400 mm (16″) n400 mm x 9 times (16″ x 9) |
|
| Machine Weight | 1460 kg (3215 lb) | |
| Floor Space (L x W) | 2100 x 2200 mm (82.6″ x 86.6″) | |
