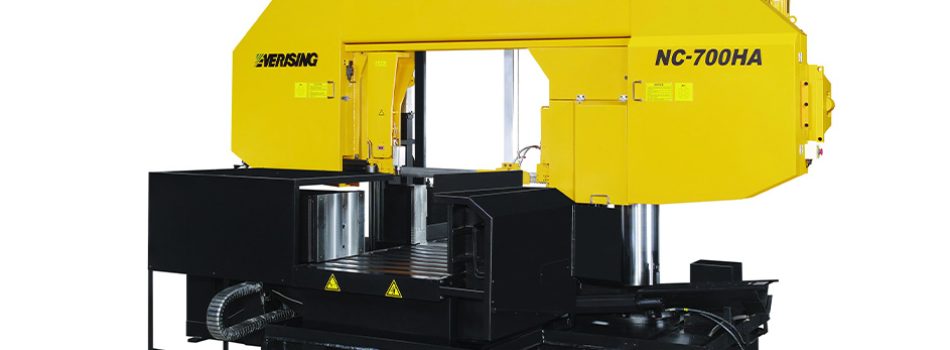

| Model | NC-700HA | |
|---|---|---|
| Capacity | 700 mm (28″) | |
| 800 x 700 mm (31.5″W x 28″H) nmin. clamp width 285 mm (11.2″) |
||
| Blade Speed | 15 to 90 m/min (50 to 300 fpm) (INVERTER) | |
| Motor | Blade Drive | 11.2 kW (15HP) |
| Hyd. Pump | 3.7 kW (5HP) | |
| Coolant Pump | 0.4 kW (1/2HP) | |
| Blade Size | 8300 x 67 x 1.6 mm (327″ x 2.63″ x 0.063″) | |
| Blade Tension | Hydraulic | |
| Index Length | 500 mm (20″) NC comtrol | |
| Machine Weight | 7000 kg (15400 lb) | |
| Floor Space (L x W) | 4100 x 2300 mm (161.4″ x 90.5″) | |
