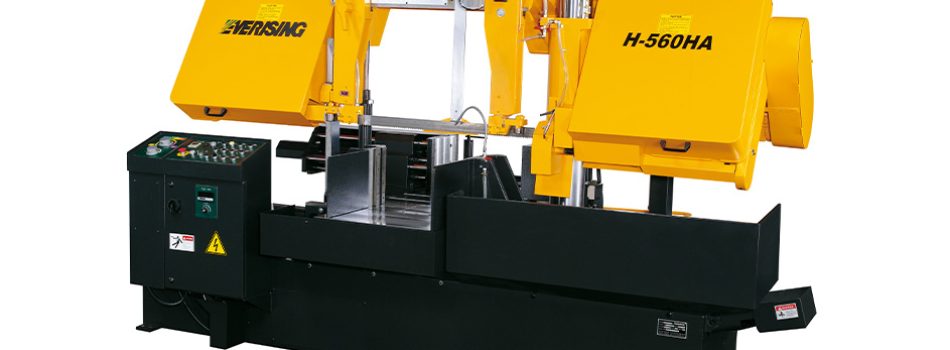

| Model | H-560HA | |
|---|---|---|
| Capacity | 560 mm (22″) | |
| 610 x 560 mm (24″W x 22″H) nmin. clamp width 110 mm (4.3″) |
||
| Blade Speed | 18 to 90 m/min (60 to 300 fpm) (INVERTER) | |
| Motor | Blade Drive | 7.5 kW (10 HP) |
| Hyd. Pump | 2.2 kW (3 HP) | |
| Coolant Pump | 0.2 kW (1/4 HP) | |
| Blade Size | 6600 x 54 x 1.6 mm (260″ x 2.1″ x 0.0632″) | |
| Blade Tension | Hydraulic | |
| Index Length | 400 mm (16″) n400 mm x 9 times (16″ x 9) |
|
| Machine Weight | 4500 kg (9920 lb) | |
| Floor Space (L x W) | 3400 x 2190 mm (134″ x 86″) | |
