H-3010

H-3010

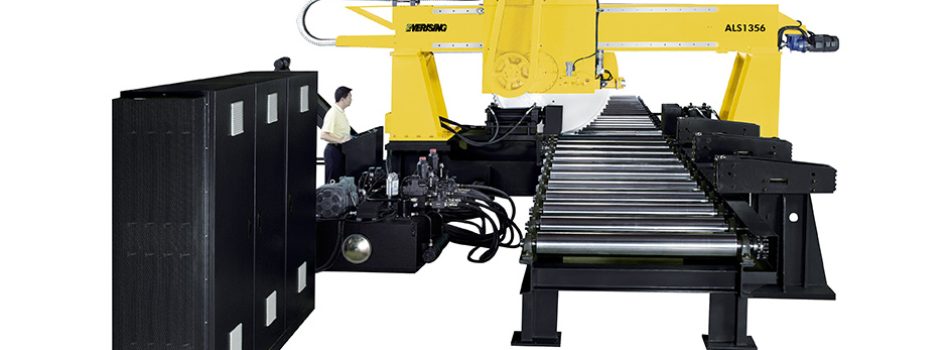

ALS1356
Model H-3010
Capacity 1000(H) x 3000(W) x 5000(L) mm
Blade size 16940 x 80 x 1.6 mm
Blade speed 300 – 1000 m/min
Motor Blade 22 kW ( 30 HP)
Hydraulic pump 5.5 kW ( 7.5 HP)
Feed 2 kW ( 3 HP)
Cutting fluid pump 360 W ( 1/2 HP)
Table Feed stroke 5900 mm
Table height 750 mm
Machine dimension (W x D x H) 7950 x 13400 x 5300 mm
Floor space 7950 x 13400 mm
Machine weight 40000 kg
