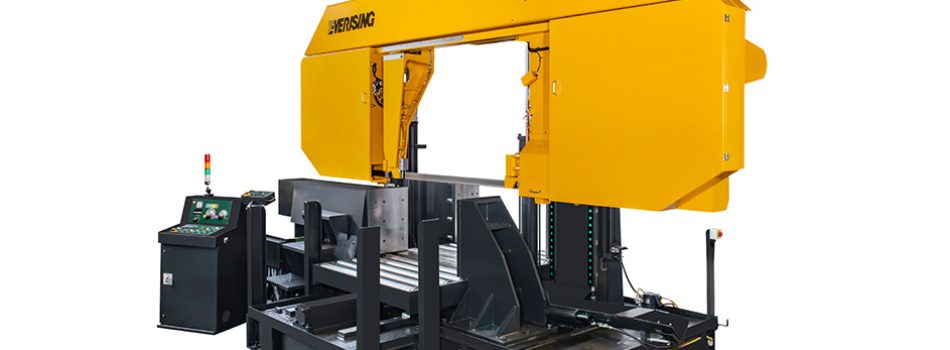

| Model | H-1300L | |
|---|---|---|
| Capacity | 1300 mm (52″) | |
| 1300 x 1300 mm (52″ W x 52″ H) nmin. clamp width 535 mm (21.1″) |
||
| Blade Speed | 15 to 70 m/min. (50 to 230 fpm) (INVERTER) | |
| Motor | Blade Drive | 15 kW (20HP) |
| Hyd. Pump | 3.7 kW (5HP) | |
| Coolant Pump | 0.2 kW (1/4HP) | |
| Blade Size | 12300 x 80 x 1.6 mm (484″ x 3″ x 0.063″) | |
| Blade Tension | Hydraulic | |
| Index Length | 600 mm (23.6″) | |
| Machine Weight | 16000 kg (35200 lb) | |
| Floor Space (L x W) | 5600 x 2800 mm (220.5″ x 110″) | |
