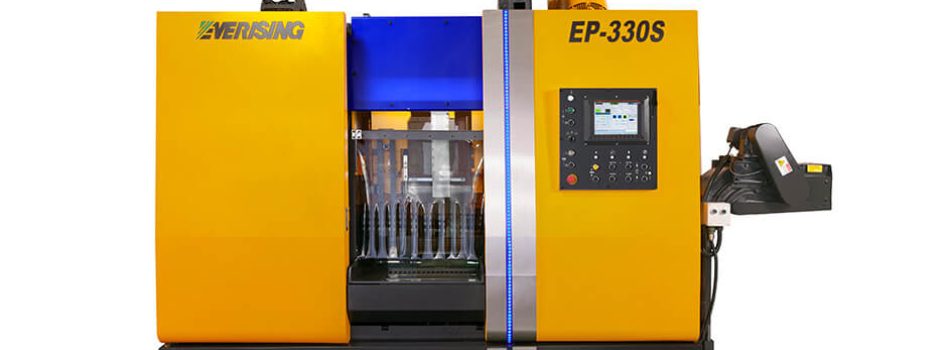

| MODEL | EP-330S | |
|---|---|---|
| Capacity | 30 – 330 mm | |
| 30 – 330 x 400 mm | ||
| Saw Blade | Blade Size | 5580 x 54 x 1.3 mm |
| Blade Speed | 15 – 200 m/min | |
| Blade Tension | Hydraulic | |
| Motor | Blade | 15 kW (20 HP) |
| Hydraulic Pump | 2.2 kW (3 HP) | |
| Saw Head Feed | 3.5 kW | |
| Material Feed | 3.5 kW | |
| Coolant Pump | 0.37 kW | |
| Wire Brush | 0.12 kW | |
| Material Feed | AC Servo Motor + Ball Screw | |
| Saw Head Feed | AC Servo Motor | |
| Shuttle Stroke | 500 mm | |
| Table Height | 730 mm | |
| Machine Dimension (W x L x H) | 3600 x 2100 x 2600 mm | |
| Machine Weight | 5600 kgs | |
